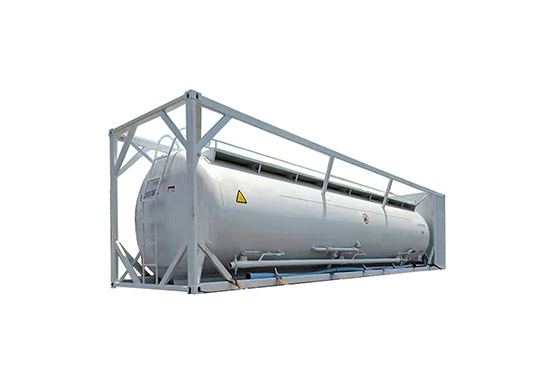

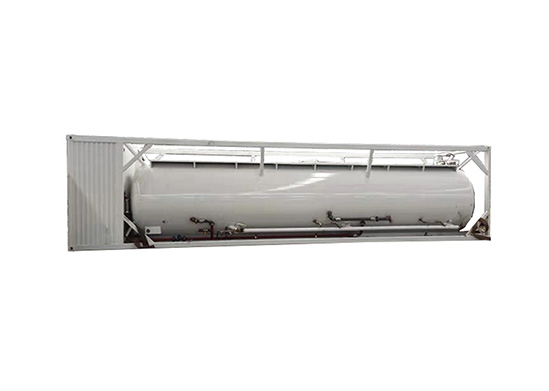

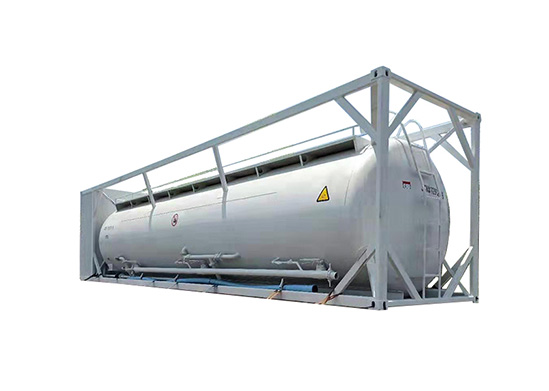

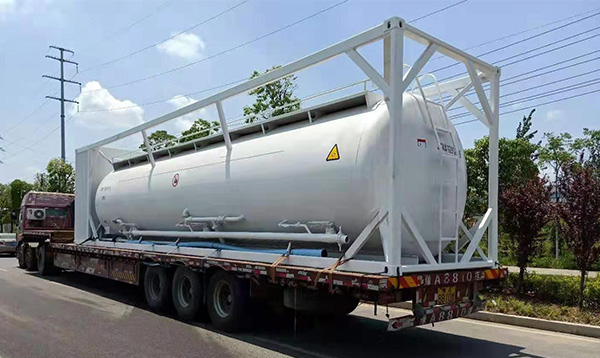

40 Feet bulk cement container tank

Model number：JSXT
Transport medium：Bulk lime cement
volume：50 square
Overall dimension (mm)：12192 * 2438 * 2896
Tank size (mm)：11800 * 2300 * 2600
Dead weight (kg)：10000

Send Email Inquiry Now

Product Introduction

Model number：JSXT

Transport medium：Bulk lime cement

volume：50 square

Overall dimension (mm)：12192 * 2438 * 2896

Tank size (mm)：11800 * 2300 * 2600

Dead weight (kg)：10000

40 Feet bulk cement container tank

Product name	40 ft powder grain material tank box	Model number	JSXT
Transport medium	Bulk lime cement	volume	50 square
Overall dimension (mm)	12192 * 2438 * 2896	Tank size (mm)	11800 * 2300 * 2600
Dead weight (kg)	10000	deadweight	/
Production cycle	30	Warranty/certificate	There are
Product parameters (main configuration)
Item	Standard Specification
Tank material	Q235 Carbon steel /6.0mm
Beam material	Q235B Rectangular square Tube
shape	Circular form
Number of compartments	4 bins
Maintenance weight (kg)	10000
Total mass	/
Head thickness	6mm
Tank thickness	6mm
manhole	4
Discharge valve	4
Discharge port	1 piece
Breathing valve	4
Manhole cover	4
Fluidized bed Angle	15 degrees
color	According to user requirements
