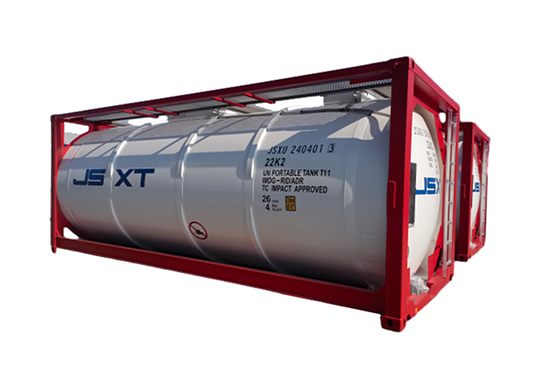

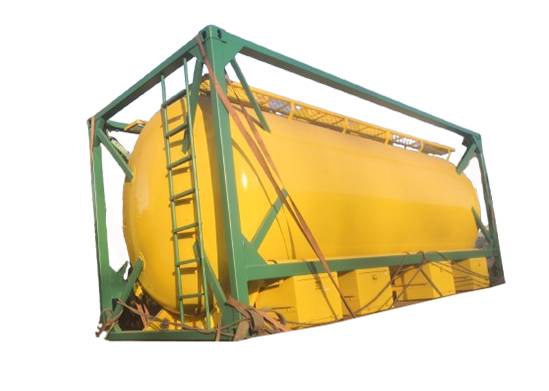

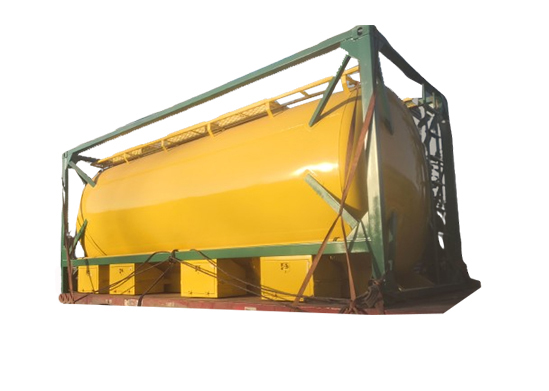

Our 20-foot edible oil tank container is specifically designed for the safe transportation of food-grade oils. With a capacity of 21-26cubic meters, it provides ample space to store and transport a variety of edible oils, including vegetable oil, olive oil, and sunflower oil. Constructed from high-quality, food-grade carbon steel, this tank ensures compliance with strict safety and hygiene standards.
Our 20-foot edible oil tank container Key Features:
Food Safety Compliance: Made from food-grade materials, ensuring the safe transport of edible oils without contamination.
Large Capacity: The 21-26 cubic meter capacity maximizes efficiency, reducing the number of trips needed for transportation.
Durable Construction: Built from robust stainless steel 316, this tank is resistant to corrosion and impacts, providing long-lasting performance.

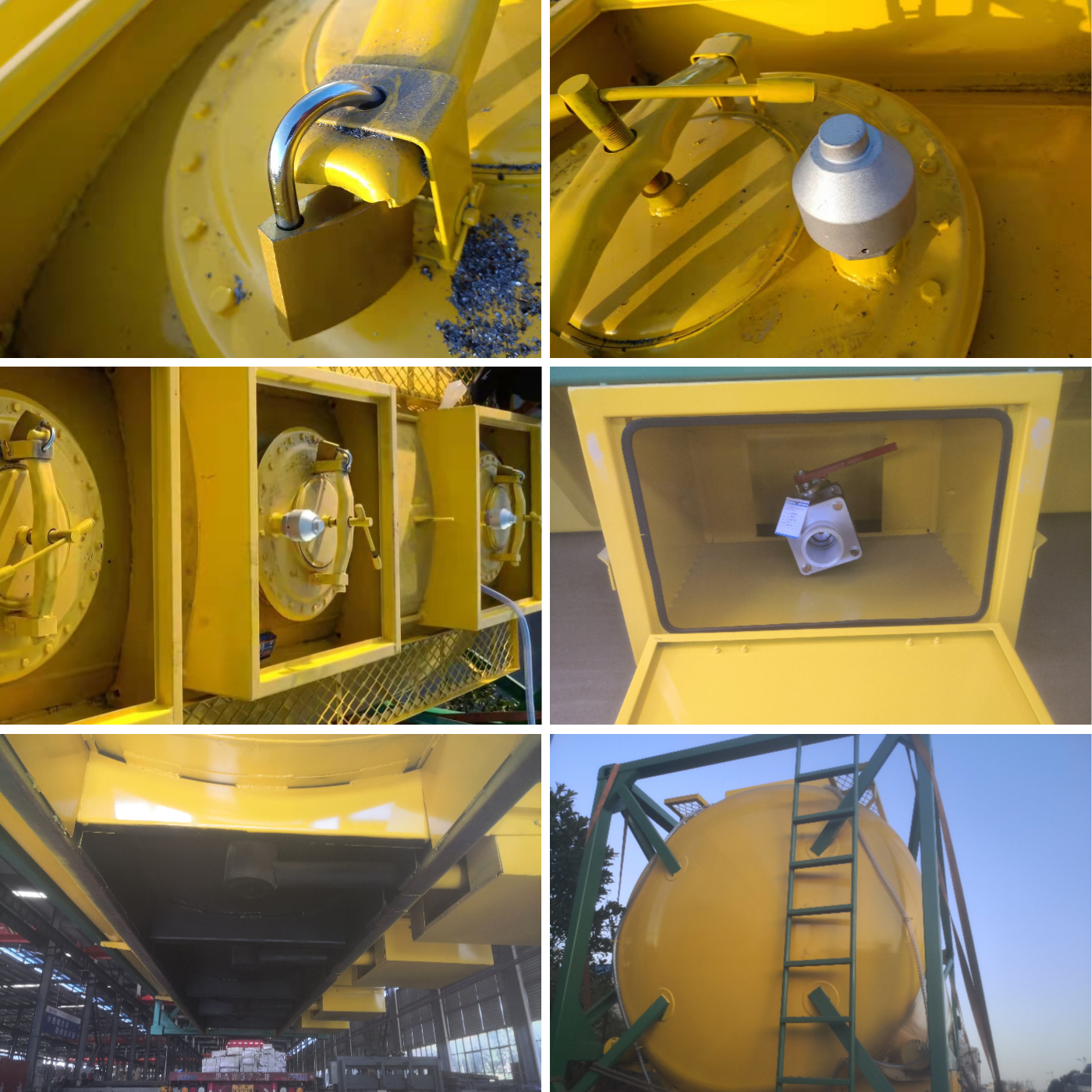

Easy Loading and Unloading: Equipped with strategically placed openings and valves for hassle-free handling and transfer of oil.
Sealed Design: Features an airtight seal to prevent spills and maintain the quality of the contents during transport.
| Tank Type | 20' ISO full frame collar tank, Type UN Portable Tank , without insulation, top side rails fitted |
| Frame Dimensions | 20' x 8' x 8'6" |
| Capacity | 21,000 Litres (+ /- 1%) |
| 24,000 Litres (+ /- 1%) | |
| 25,000 Litres (+ /- 1%) | |
| 26,000 Litres (+0 /- 1%) | |
| M.G.W. | 36,000 kg |
| Tare (est.) | 3,250 kg +/- 3% |
| Max Payload | 32,750 kg |
| Working Pressure | 4 Bar |
| Test Pressure | 6 Bar |
| Design Temp | -40ºC to +130ºC |
| Vessel Material | SANS 50028-7 WNr 1.4402/14404 (C<0.03%), equivalent to 316L |
| Shell: Cold Rolled 2B finish | |
| Ends: Hot rolled or Cold Rolled, polished internally to 1.2 Micron CLA | |
| Shell Thickness | 4.4 nominal |
| Ends Thickness(B.F) | 4.5 mm nominal |
| 4.6 mm nominal | |
| Corrosion Allowance | 0.2mm |
| Frame Material | GB/T 1591-Q345D or SPA-H (or equivalent) |
| Frame to Shell | 316 stainless steel |
| Corner castings | ISO 1161 - 8 off |
| Vessel Design Code | ASME VIII Div 1 where applicable |
